Project Description
FIRE DAMPER
Fire dampers are passive fire protection products used in heating, ventilation, and air conditioning (HVAC) ducts to prevent the spread of fire inside the ductwork through fire-resistance rated walls and floors.
Scroll down to discover what we can do for you.
SERVICE INFORMATION
We specialise in performing routine fire damper maintenance and inspection, as well as audit and repair, to let you meet and exceed legislative requirements and give you peace of mind.
To go in line with your future budgets, we can implement service agreements dividing fire damper inspections over a period of 5 years (20% per year as per the Australian Standard).
Regulations
Building regulations exist to ensure the safety and comfort of building users. In Australia’s States and Territories, this is regulated through the provisions outlined in the Building Code of Australia (the BCA).
The BCA provides detailed guidance on performance and construction requirements for various building types and frequently references applicable Australian Standards. These documents detail specifications and procedures designed to ensure products, services and systems are safe, reliable and consistently perform the way they were intended to.
The BCA covers several areas that directly relate to our products including Section C 3.15 Openings for service installations ‘Ventilation & air-conditioning’, and C3.12 Openings in floors and ceilings for services.
Installation and Repair
D Tech-Engineering’s Fire Damper range is designed to impede the spread of fire and/or combustible products (e.g. smoke) through masonry, lightweight partition or shaft wall openings to other fire compartments of an air-handling system, and to protect penetrations in the ceiling membrane portion of fire-rated ceilings. D Tech-Engineering’s Fire Dampers are suitable for air-conditioning, ventilation and heating systems in commercial buildings.
The range includes:
- Curtain Fire Damper
Single Blade Fire Damper
- Slab Fire Damper
- Ceiling Fire Damper
- Round Fire Damper
Intumescent Fire Damper
Please use the contact form near the bottom of this page to get in touch with us today for all your audit, inspection and installation needs. Thank you.
Checks and Verification
Fire dampers are passive fire protection products used in heating, ventilation, and air conditioning (HVAC) ducts to prevent the spread of fire inside the ductwork through fire-resistance rated walls and floors.
We specialise in performing routine fire damper maintenance and inspection, as well as audit and repair, to let you meet and exceed legislative requirements and give you a peace of mind.
To go in line with your future budgets, we can implement service agreements dividing fire inspections over a period of 5 years (20% per year as per the Australian Standard).
The following procedure is in accordance with AS 1851-2005
1. Locate and identify fire damper
2. Check and ensure that the fire damper is in place, open and free of obstruction
3. Install duct access panels where necessary for visual inspections
4. Check mounting is sound and free of corrosion
5. Clean damper free from dirt and lubricate blade pivots
6. Release the thermal link to ensure closure and latching ( replace thermal link and release spring if required )
7. Provide Certification Report to you, the Client:
- Fire damper inspection report
- Listing the location of every damper
- Damper number corresponding with the clients completed construction drawings
- Whether the damper has passed or failed inspection
- If the damper has failed the inspection, a detailed explanation will be provided
The failure rate of a fire damper that has not been inspected or maintained is very high, don’t risk it.
TYPES OF FIRE DAMPERS
Types of fire dampers available for installation in your building
Curtain Fire Damper
Features:
- Simplicity in design
- Tight manufacturing tolerances
- High strength and repeatable quality of roll-formed blades
- Integral interlocking blade linkages
- Blade stack re-settable from both sides of damper
- Suitable for masonry and dry wall application
- Adjustable mounting angles
- Suitable for multi-module installation

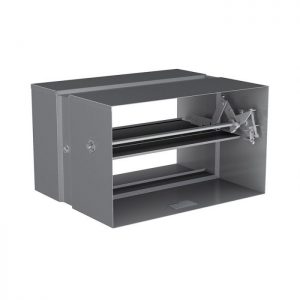

Single Blade Fire Damper
Features:
- Simplicity in design
- Tight manufacturing tolerances
- Sturdy press-formed and fully welded frame construction
- Light weight damper easy to install
- Suitable for masonry and dry wall applications
- Adjustable mounting angles
- Suitable for multi-module installation
- Spring assisted closure

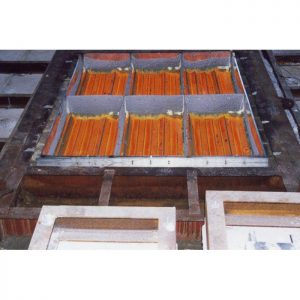

Slab Fire Damper
Features:
- Simplicity in design
- Tight manufacturing tolerances
- High strength and repeatable quality of roll-formed blades
- Integral interlocking blade linkages
- Blade stack re-settable from both sides of damper
- Suitable Vertical airflow application
- Adjustable mounting angles
- Suitable for multi-module installation
Ceiling Fire Damper
Features:
- Simplicity in design
- Tight manufacturing tolerances
- Sturdy press-formed and fully welded frame construction
- Light weight damper easy to install
- Suitable for lightweight ceiling construction
- Adjustable mounting angles
- Heat protective shielding on blade
- Spring assisted closure

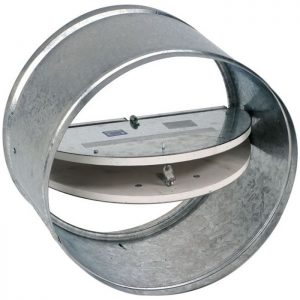

Round Fire Damper
Features:
- Rugged construction
- Tight manufacturing tolerances
- Rolled casing seam-welded over full length
- Non-corrosive blade bearings
- Stainless steel version available as option
- Suitable for masonry wall and floor mounting application
- Adjustable mounting angles
- Spring assisted closure

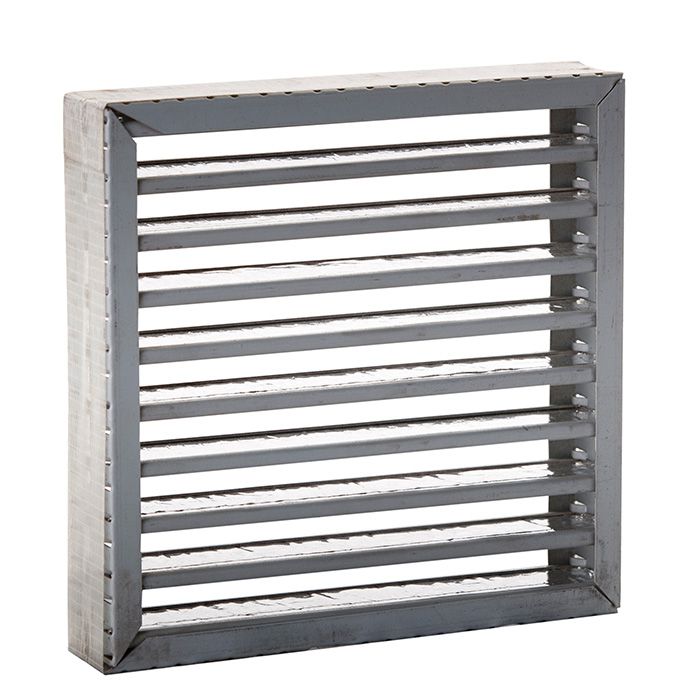

Intumescent Fire Damper
Features:
- Simple installation
- Lightweight, slim-line design
- No moving components
- Suitable for retrofit of seized mechanical dampers
- Approvals for wall, floor and ceiling mounting
- No thermal expansion clearances during install
- Reduced maintenance translates to cost savings as a result
